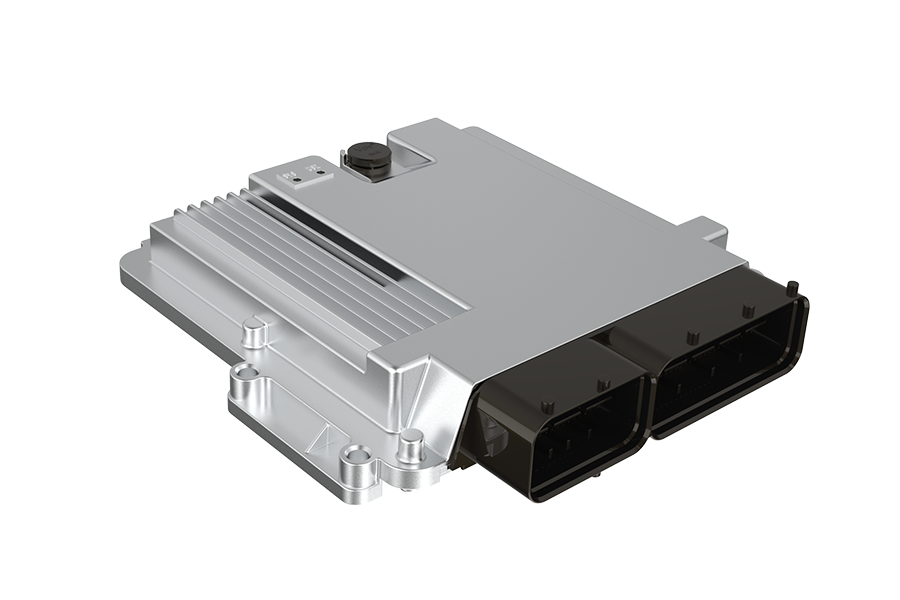

HLEC-C Series Universal Controller

Summary

The HLEC series C3-7053 is a universal functional controller designed for the field of mobile machinery. Its development process strictly follows the functional safety standards of IEC61508 and ISO13849, and reaches the CAT3 PL-d safety level.
Power supply voltage: 8-36V (MAX 40A)

Download Documents Inquiry Message

Open All | Close All

Series products

Model
Type
Input Port
Output Port
Safety function
CodeSys
Controls

HLEC-C1-7450
Standard controller
74
50
否
Add to cart

HLEC-C3-7053
Safe controller
70
53
是
Add to cart

Serial Advantage

? 4xCAN2.0B communication bus

? Adopting a 300MHz high-performance 32-bit processor

? 6MB high-capacity SoC internal FLASH storage space

? 4.3MB high-speed integrated RAM

? Compliant with ISO13849-1 Cat. 3 security architecture, PLd Safety performance level

? Complies with IEC61508 SIL2 safety integrity level

? Flexible pin reuse to meet the needs of various models

? Protection level up to IP67, equipped with multiple protections such as wide voltage, strong vibration resistance, and hardware short circuit protection

? Current, voltage, and level input signals can be configured

? Output channel signal recovery, achieving closed-loop control and self diagnosis functions

? Support real-time online calibration

? Supports Codesys 3.5, Simulink, and C language development platforms
